Concrete Foundations

Concrete foundations

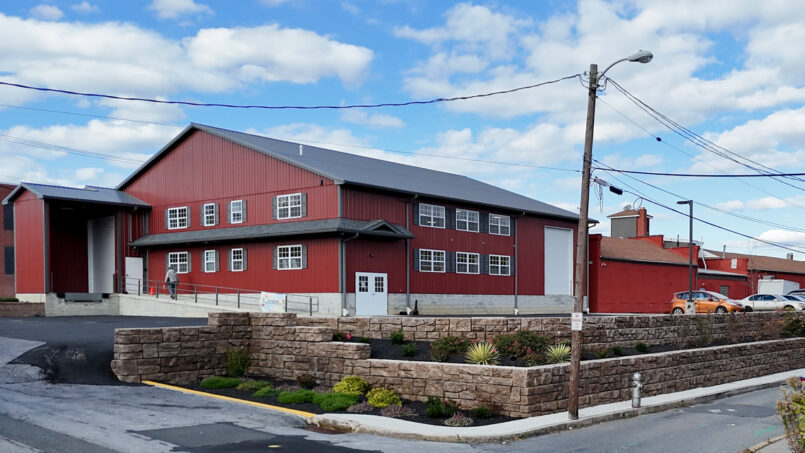

BedRock Siteworks brings your site to a level grade. Concrete is strong, durable, and is the best solution for horse barns, pole barns, garages, cabins, and sun porches. The type of foundation that’s best for your situation depends on the type of building that you’re installing. We work with you to determine which of the concrete foundation options best meets your budget and is best for the characteristics of your site. For sloped area’s a retaining wall may be needed to extend the level area.

There are four types of concrete foundations: the Gibraltar, concrete pillars, floating slab, and graduated slab. Feel free to contact us for guidance through the process regarding specific detail’s on which foundation may be best for your situation.

The Gibraltar Concrete Foundation

Gibraltar concrete foundation for garage
Gibraltar concrete foundation used for a garage.

A: Excavation of site
B: Trench 24” wide X 36” deep (below frost line)
C: 24” x 8″ depth footer (3500 psi concrete pour) reinforced with #4 rebar
D: Cement wall: 8″ x 8″ x 16″ cement block and mortar built up to 6″ above grade
E: 4″ gravel base for drainage, vapor barrier to eliminate moisture and #4 rebar dialed into the cement wall for maximum strength
F: 4″ concrete slab 3500-4000 psi

Concrete Pillars

Concrete pillars
Concrete pillars used to anchor a structure like a pole barn.

A: Excavation of site
B: Dig holes 32″ to 36″ deep, by 16″ to 24″ diameter
C: Sona tube forms are placed into hole
D: #4 rebar inserted into forms
E: 3500-4000 psi concrete pour
F: Metal strapping

Some townships require horse barns to rest on concrete pillars.

Floating Slab Foundation

Floating slab concrete foundation
A floating concrete slab used as a foundation for a shed or other structure.

A: Excavation of site
B: 4″ gravel base for drainage
C: Vapor barrier to eliminate moisture
D: #4 rebar, for structural integrity
E: 4″ concrete slab 3500-4000 psi

Graduated Slab Foundation



Graduated slab concrete foundation
A graduated slab concrete foundation used for sheds or other structures.

A: Excavation of site
B: Trench with 12″ to 18″ thickened edge
C: 4″ gravel base for drainage, vapor barrier to eliminate moisture, #4 rebar for structural integrity
D: 4″ concrete slab 3500-4000 psi
